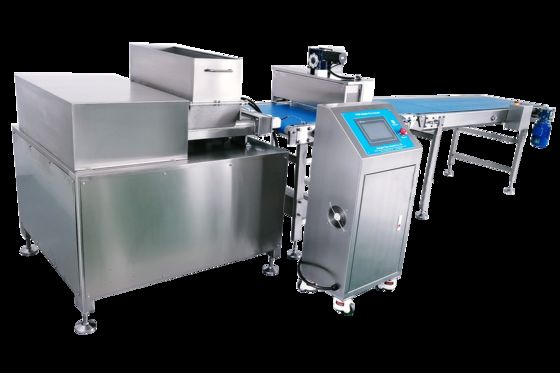

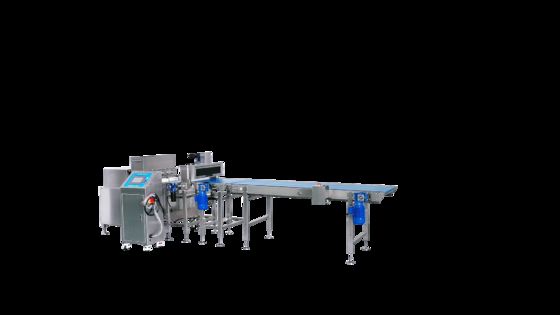

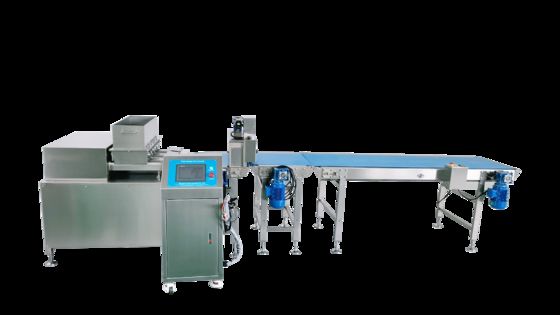

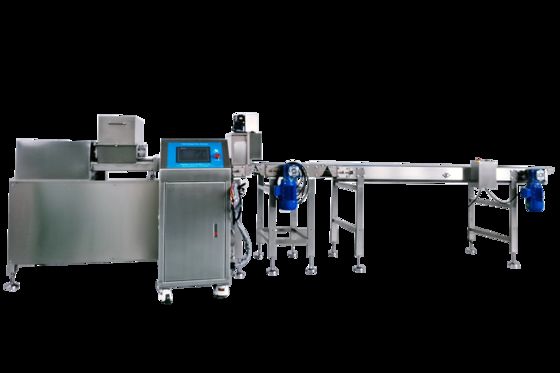

Multi-Row Protein Bar with Chocolate Coating Production Line | High-Capacity Automatic System

Multi-Row Protein Bar with Chocolate Coating Production Line | High-Capacity Automatic System

نام تجاری:	Papa
شماره مدل:	P400
مقدار تولیدی:	1 مجموعه
قیمت:	قابل مذاکره
شرایط پرداخت:	T/T
توانایی عرضه:	10 مجموعه در هر ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

جزئیات بسته بندی:

کیس چوبی

قابلیت ارائه:

10 مجموعه در هر ماه

توضیحات محصول

Triple Your Protein Bar Output with Multi-Row Chocolate Coating Technology.

Our advanced multi-row production line enables simultaneous production of 3-6 protein bar rows with perfect chocolate coating. Achieve mass production efficiency while maintaining premium quality for your protein bar business.

Key Benefits:
- High-Density Production - 3-5 rows output, 6,000-15,000 bars/hour
- Uniform Chocolate Coating - Consistent coating thickness across all rows
- Maximum Efficiency - 300% higher output than single-line systems
- Space Optimized - Compact design saves factory floor space
- Premium Quality - Laboratory-grade precision in commercial production

Technical Specifications

Parameter	3-Row System	6-Row System
Capacity	6,000-9,000 bars/h	12,000-15,000 bars/h
Coating Width	900mm	1500mm
Chocolate Temp Control	±0.5°C accuracy	±0.5°C accuracy
Power Requirements	45kW	75kW
Control System	Industrial PLC with HMI	Industrial PLC with HMI
Line Length	25 meters	30 meters

Production Features

Multi-Row Synchronization:

Simultaneous 3-6 row processing
Individual row monitoring system
Synchronized speed control
Independent troubleshooting

Precision Coating System:

Multi-curtain coating technology
Individual temperature zones
Automated viscosity control
Coating recovery system

Smart Manufacturing:

Real-time production analytics
Predictive maintenance alerts
Remote monitoring capability
Automated quality control

Configuration Options

Row Arrangements:

3-row compact system
4-row balanced system
6-row maximum output
Custom configurations

Coating Variants:

Full chocolate coating
Bottom-only coating
Drizzle patterns
Dual-flavor coating

Special Features:

Quick row changeover system
CIP cleaning system
Energy recovery unit
Hygienic design certification

Detailed Product Description

The Precision Process:

Gentle Mixing (Optional): A custom-designed mixer gently folds sticky date paste, nut butters, proteins, and whole ingredients (nuts, fruits) without smashing or over-processing.

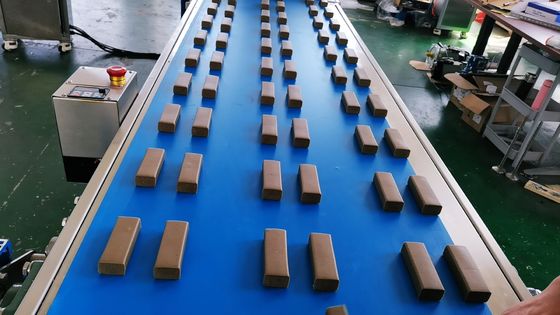

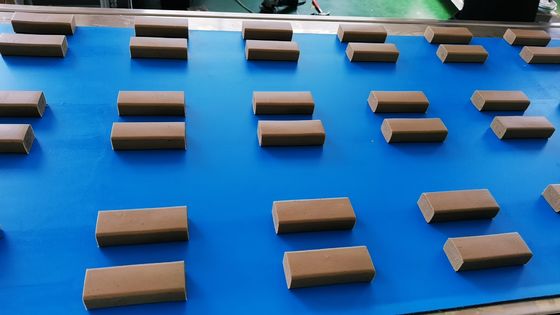

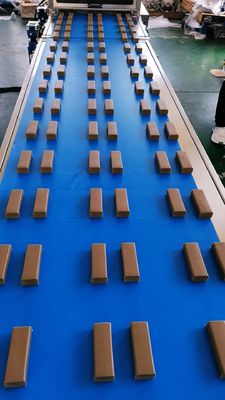

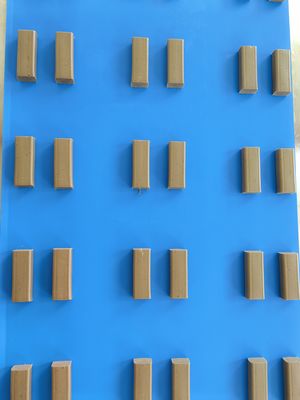

Multi-Row Forming & Extrusion: The heart of the line. The homogeneous mixture is precisely extruded through a multi-lane depositor head, creating 2, 3, or 4 continuous, perfectly shaped rows of product simultaneously.
Multi-Stage Cooling Tunnel: The bars travel through a cascading cooling tunnel to set their structure. This is critical for achieving the desired chewiness and preventing bars from sticking together.
Enrobing Option (Optional): For chocolate-coated bars, the lines seamlessly feed into a precision enrober that covers the bars with a curtain of tempered chocolate (dark, milk, or compound).
Cooling & Setting (For Chocolate): A second cooling tunnel sets the chocolate coating to a glossy, snap-perfect finish.
Automatic Multi-Lane Wrapping: Finally, the bars are fed into high-speed flow-wrapper that packages them in air-tight film.

✔ Customizable Bar Sizes: Adjustable molds for different weights (e.g., 30g, 50g, 100g).

✔ Versatile Formulations: Works with protein doughs, nut butters, granola, oats, and sticky mixtures.

Multi-Row Protein Bar with Chocolate Coating Production Line | High-Capacity Automatic System 5

Success Metrics

Global Nutrition Company Results:

Output Increase: 400% higher production capacity
Labor Efficiency: 80% reduction in operating staff
Quality Consistency: 99.2% product uniformity
ROI Achievement: 14-month payback period
Energy Savings: 25% reduction per unit produced

"The multi-row system transformed our production capabilities, allowing us to meet global demand while maintaining premium quality standards."

Technical Support

Comprehensive Service Package:

24/7 remote monitoring
Predictive maintenance
Spare parts guarantee
Operator certification program
Annual performance audit

FAQ

Q: How is coating consistency maintained across all rows?
A: Individual temperature control and curtain adjustment for each row ensures perfect consistency.

Q: What happens if one row requires maintenance?
A: The system allows independent row shutdown while other rows continue production.

Q: Can different recipes run on different rows simultaneously?
A: Yes, the system supports individual recipe management per row.

Q: How long does row changeover take?
A: Complete row configuration change in under 30 minutes with our quick-change system.
